Original Atlas MD5 head

• Original Atlas MD5 head. Catalogue 1

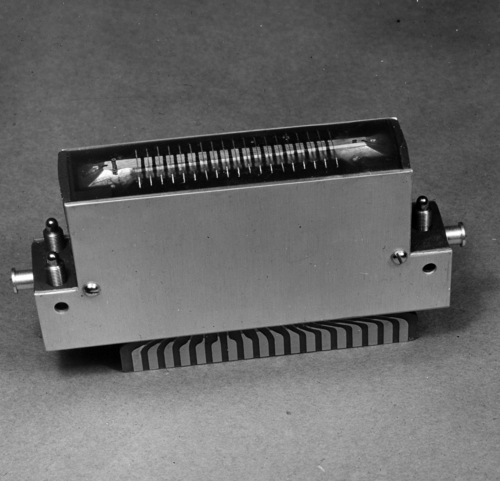

• This photograph is P2 in Eric Dunstan'd PhD thesis, 1962 in which its caption ios "A Complete Block Head"

• See plate S384 for component parts.

• Eric Dunstan's PhD thesis (1962) gives the head characteristics in Table 3 (between p99 and p100) as:
  Number of heads in a block = 18
  Track Width = 0.030 inches
  Distance between head centres in a block = 0.098 inches
  Gap Length = 0.002 inches
  Head Winding Center Tapped
  Inductance of Each Half = 60 micro H
  Indictance of Complete Winding = 190 micro H

---

ID: plate S383. 4157x4000 (+PDF). Copyright: unknown. Collection: The original Departmental collection of 3.25" square glass lantern slides. Source artefact: P0469A-S383, 3½" glass lantern slide, condition: good.

---
